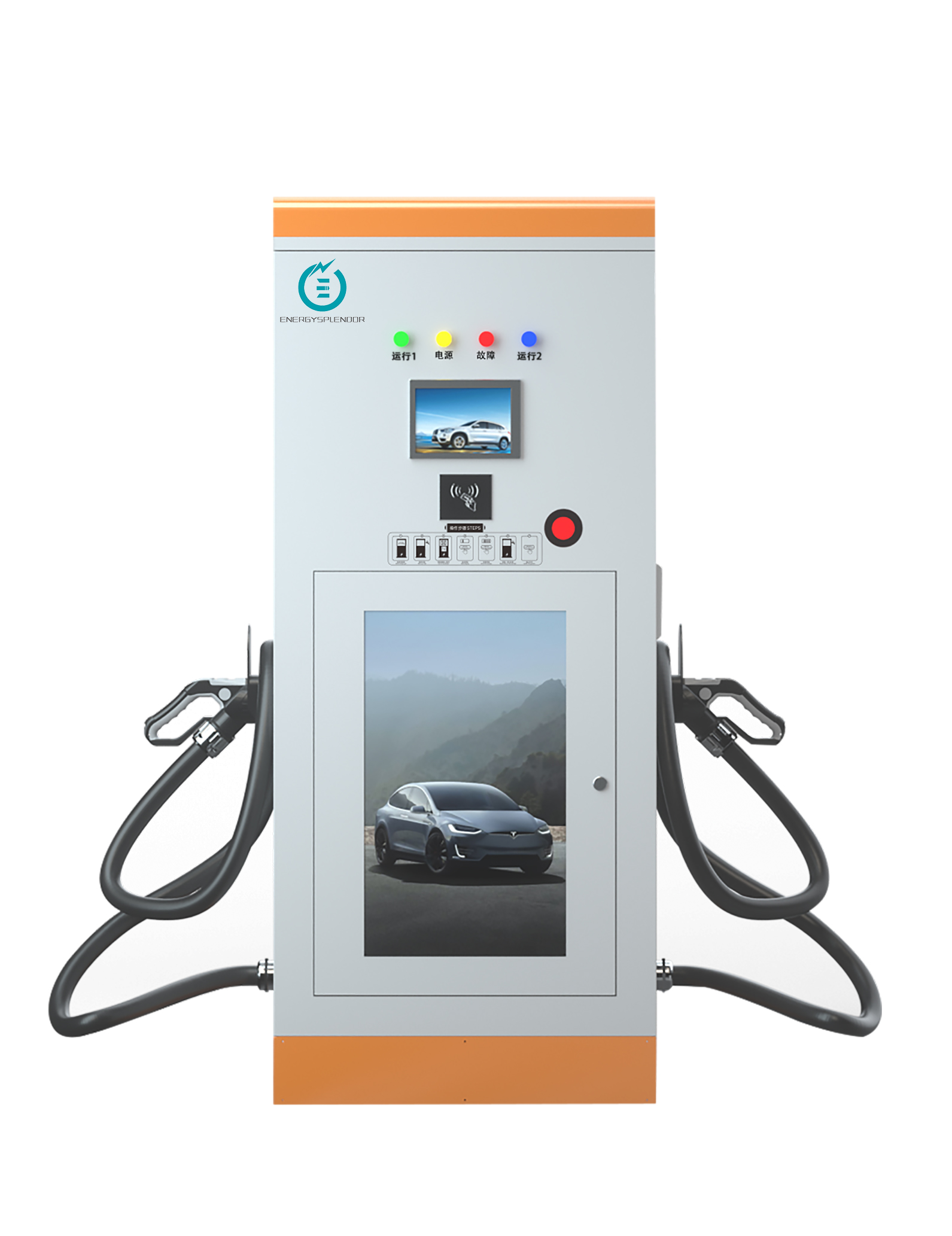

60KW/80KW DC charging station

+86 028-84701868

60KW/80KW DC charging station

60KW/80KW DC charging station

The Rapid 60 kW can be used for every modern electric vehicle. with 7 inch LCD color display touch screen.make your green charging life more smart.

List price： 0.00

Price： 0.00

The Rapid 60 kW can be used for every modern electric vehicle. with 7 inch LCD color display touch screen.make your green charging life more smart.

Product	Integrated DC Chariging Station
Type	AF-DC-60KW	AF-DC-80KW
Dimensions	7205571700(mm)
HMI(Human Machine Interface)	7 inch LCD color display touch screen
Input Voltage	AC380V±20%
Output Current	200V-750V
Output Power	60KW	80KW
Measure Precision	0.5
Charging Mode	Swipe card, scan code
Networking Mode	Ethernet, 4G, wifi,mini program
Input Frequency	45~65Hz
Protection Function	Over voltge; under voltage; over load; short circuit; earth leakage; ground protection surge protection, etc.
Connector Type	GB/T 20234.2-2015
Charging Cable Length	5m (customizable)
Protection Grade	Ip54
