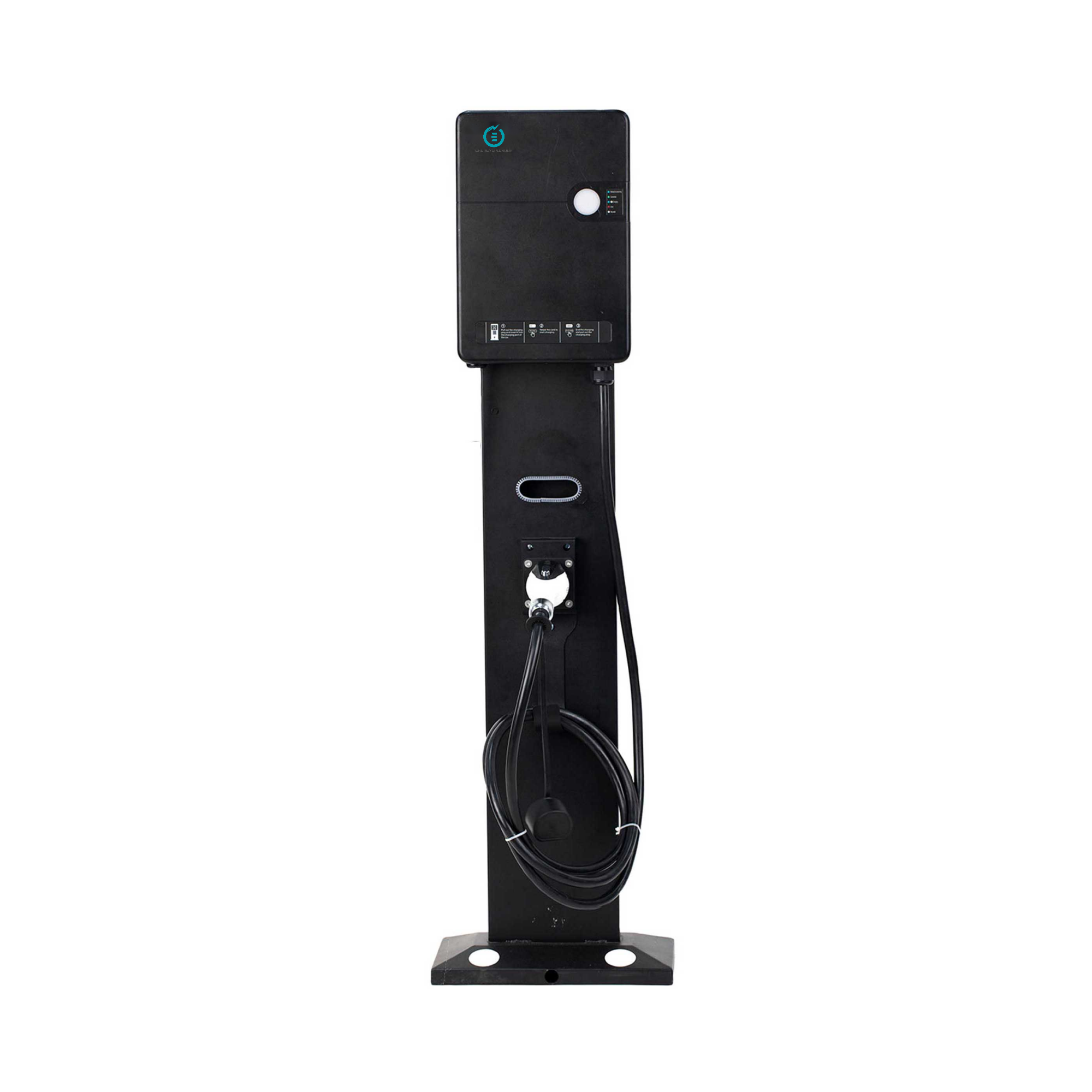

7KW stand AC charging station

+86 028-84701868

7KW stand AC charging station

7KW stand AC charging station

AC charging pile for workplace and operation, with great durability, support docking operation network,integrated RCBO and AC/DC leakage detection

List price： 0.00

Price： 0.00

AC charging pile for workplace and operation, with great durability, support docking operation network,integrated RCBO and AC/DC leakage detection

Product	7KW AC Charging Station
Type	AF-AC-7KW
Dimensions	37025585
HCI(Human-computer intersaction)	4.3inch display screen
AC power	220Vac±20% ; 50Hz±10% ; L+N+PE
Rating Current	32A
Power Output Rating	7kW
Evironmental	Altitude:≤2000m； Temperature：-20℃~+50℃
Charging Mode	Swipe card; scan to pay
Networking Mode	2G、4G、Wifi、mini progam
Operating Pattern	noncharge offline,charge offline, charge online
Protection Function	Over voltge; under voltage; over load; short circuit; earth leakage; ground protection surge protection, etc.
Charging Couple	GB/T 20234.2-2015 /SAE J1772（Type 1）/IEC 62196-2(Type 2)
Charging Cable Length	5m(customizable)
Protection Grade	Ip54
Installation	nstallation wall mount;Pedestal mounted,need relevent Accessories
