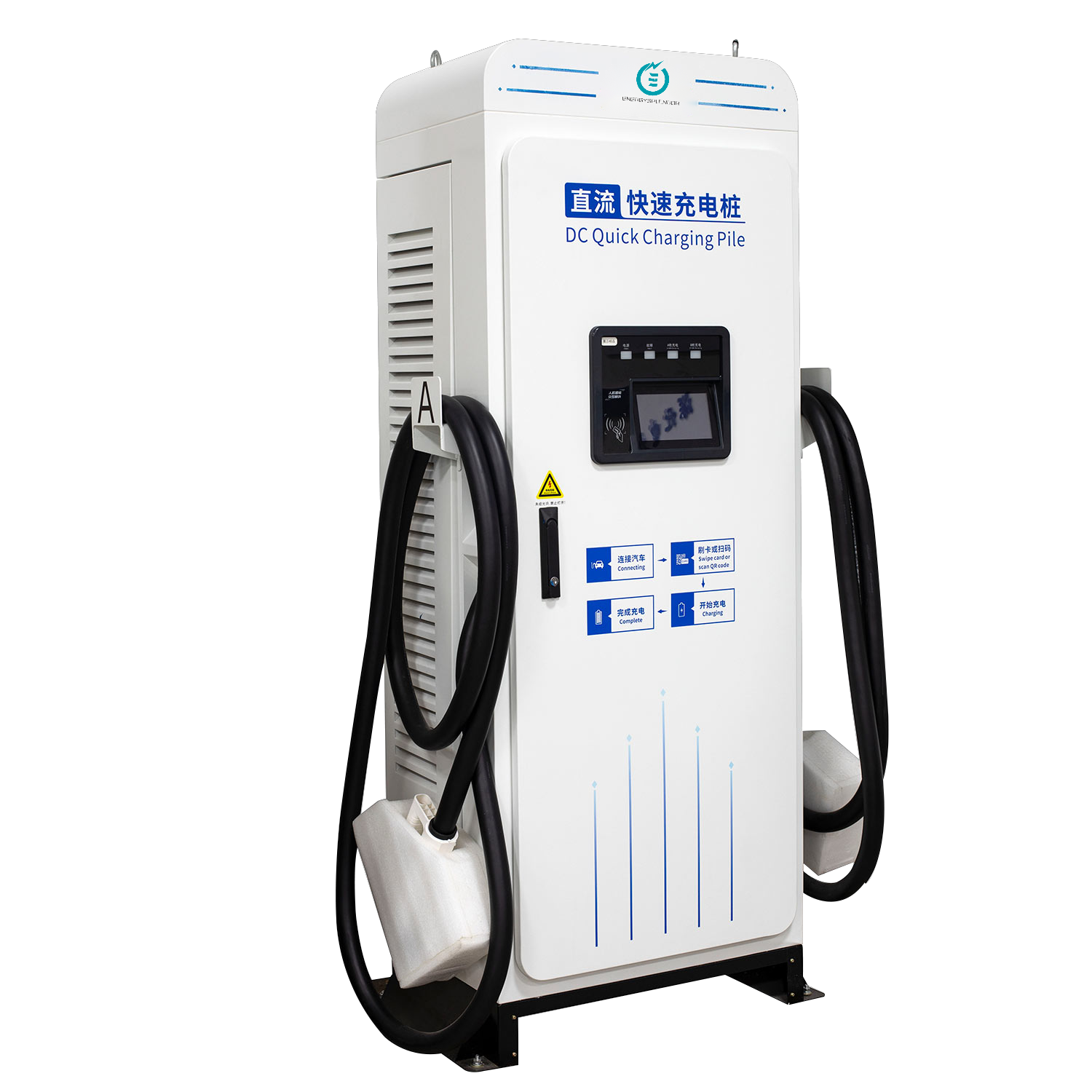

180KW DC charging station

180KW DC charging station

A fast and high efficiency solution for a single vehicle or charging 3 at once at 60 KW.

List price： 0.00

Price： 0.00

A fast and high efficiency solution for a single vehicle or charging 3 at once at 60 KW.

Product	Integrated DC Chariging Station
Type	AF-DC-120KW	AF-DC-180KW
Dimensions	7205571700（mm）
HMI(Human Machine Interface)	7 inch touch screen
AC Power	380Vac±15% ; 50Hz±10% ; L1+L2+L3+N+PE
Rating Current	250-280A
Output Power	120KW	180KW
Work Condition	Elevation: ≤2000m; Temperature: -20°C~+50°C;
Charging Mode	Swipe card, scan code
Networking Mode	Ethernet, 4G, wifi,mini program
Operating Pattern	noncharge offline,charge offline, charge online
Protection Function	Over voltge; under voltage; over load; short circuit; earth leakage; ground protection surge protection, etc.
Connector Type	GB/T 20234.2-2015
Charging Cable Length	5m (customizable)
Protection Grade	Ip54
